Description
Product Description

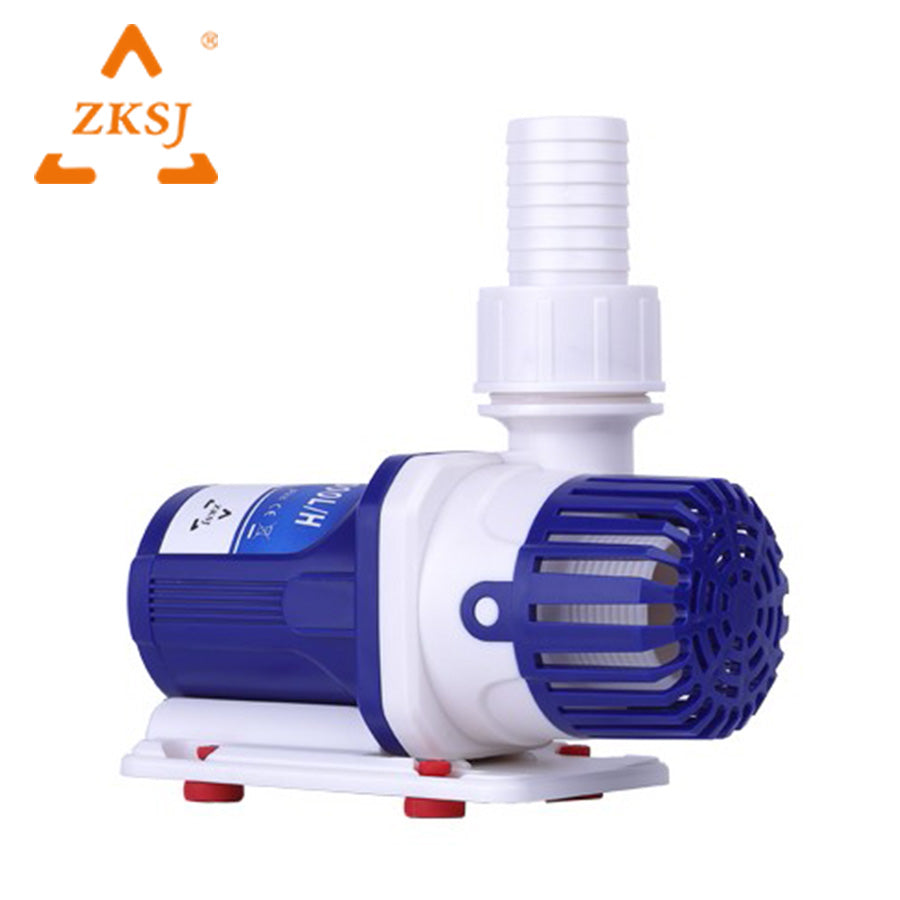

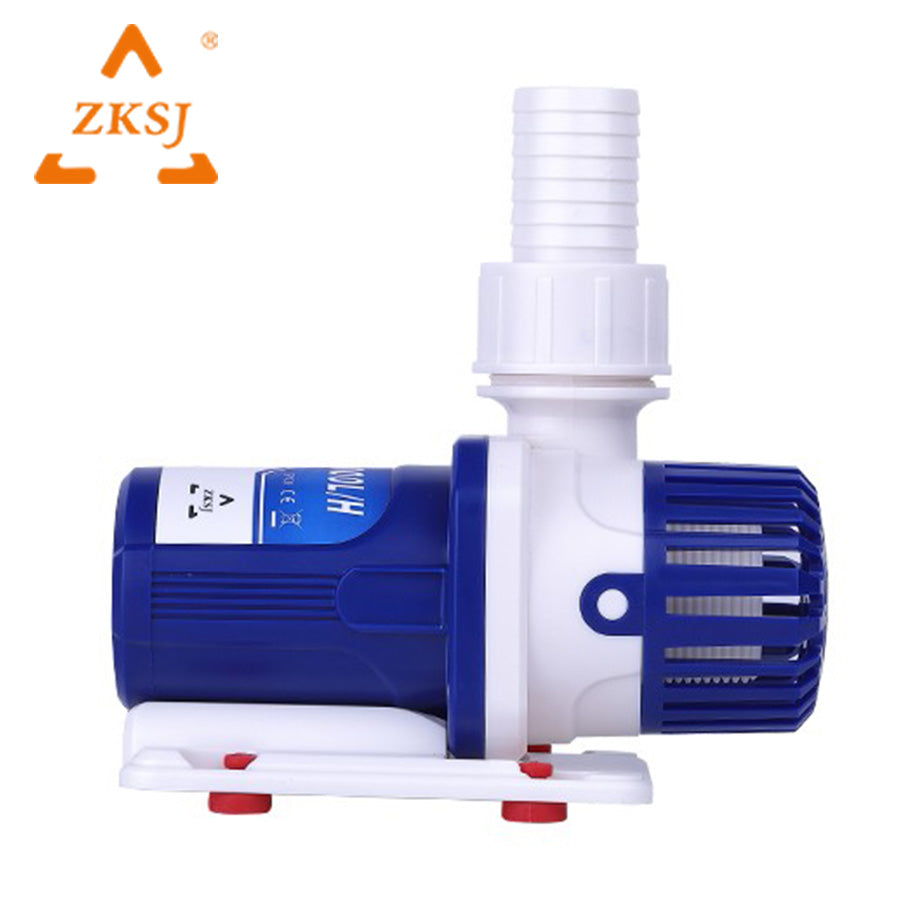

ZKSJ Circulation Pump White And Blue,Sine wave silent control,Small size with super power which overthrows the understanding of normal pump.
Brightest spot
-
DC pump with wave mode
-
Separate control
-
Silent
-
Low consumption
-
Small body with big flow
-
High pressure
-
Two years Warranty
Features
-
With three modes：Steady flow rate Mode (20 Levels) ,Wave Mode and Feed Mode, the output power could be adjusted to match different size of fish tank.
-
Use SIX-Pole Intelligent DC three-phase driver (without sensor),
-
Low voltage(DC24V) operation ,Safe, Long life expectancy and low noise.
-
With Ceramic shaft & carbon fiber shaft sleeve to make sure the motor’s long expectancy.
-
The input voltage if adapter is widely from AC100 to AC240V/60Hz) which can be suitable for many countries
-
Suitable for both fresh water and Salt water
Technical Data
| Model |
DC40Q-1000L |
DC40Q-1500L |
DC40Q-2000L |
DC52Q-3000L |
DC52Q-4000L |
DC52Q-5000L |
| Flow rate |
1000L/H |
1500L/H |
2000L/H |
3000L/H |
4000L/H |
5000L/H |
| Head |
2.5M |
3M |
3.5M |
3M |
4M |
5M |
| Max Consumption |
13W |
18W |
20W |
35W |
55W |
70W |
| Min Consumption |
5W |
5W |
5W |
6W |
10W |
10W |
| Voltage |
DC 24V |
DC 24V |
| Dimension |
128*123*67 |
170*167*79 |
| Outlet/Inlet |
15mm/20mm |
20mm/25mm |
| Model |
DC55Q-6000L |
DC55Q-7000L |
DC55Q-8000L |
DC65Q-10000L |
DC65Q-12000L |
| Flow rate |
6000L/H |
7000L/H |
8000L/H |
10000L/H |
12000L/H |
| Head |
4M |
4.5M |
5M |
4M |
5M |
| Max Consumption |
55W |
70W |
85W |
85W |
100W |
| Min Consumption |
10W |
10W |
10W |
10W |
10W |
| Voltage |
DC 24V |
DC 24V |
| Dimension |
170*167*79 |
206*177*93 |
| Outlet/Inlet |
25mm/32mm |
25mm/32mm |
Instructions (How To Use)
The pump will work in this mode when powered on.you can change the speed by the key of “speed”.when the indicator screen shows the number “101”,that means you have choose the lowest flow rate, when the indicator screen shows the number “120”,that means maximum flow rate.
Wave was generated by the changing of flow rate(from starting flow to max flow) and need two step of settings:Starting flow and Wave length.
1).Starting Flow:Before working in wave mode, you should adjust the starting flow(Mode 1) into minimum 103 (the starting flow 500L/H), 110 the starting flow 1500L/H.Maximum starting flow 115(3500L/H)
2).Wave length:After the setting of mode 1, press the key of “mode”into mode 2(wave mode),the press speed to change the wave length(20 levels).
Feed mode:
Press the key “Feed” till the indicator screen shows the number “410”. When the number “410” comes out, that means you have chosen Feed Mode successfully. And then the wave maker will stop working for your feeding fishes.Meantime, the indicator screen starts the countdown when it shows the number“410”. The countdown is 10 minutes. When the screen shows the number “400”, that means the count down is over and the wave maker restarts its working
