Product Description

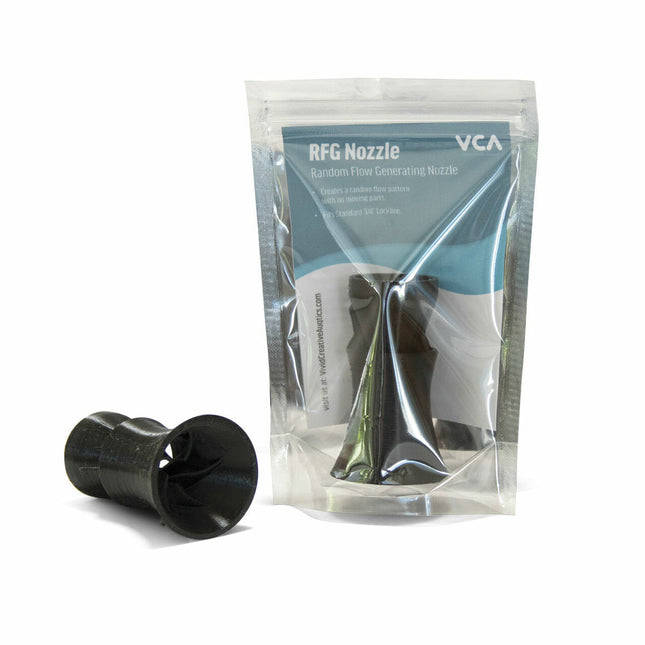

Produce a more natural flow pattern in your saltwater aquarium with the RFG Nozzle. Available for 1/2in, and 3/4in with a loc-line fitting and now available in 1 in. slip fitting.
The RFG Nozzle can dramatically change the way water moves around your reef tank and help create a more natural flow pattern.
Creates a random flow pattern with no moving parts!
Easily Snaps onto standard 1/2in Loc-Line
Printed in Reef-safe PETG plastic.
PATENT PENDING DESIGN
Flow recommendations
The RFG Nozzle will handle far more flow than the "Optimal" GPH recommendations, so we encourage you to experiment and test the limits of the RFG Nozzles.
Model
Suggested Minimum GPH
Optimal GPH
Single 1/2in RFG (RFG050 )
120-150
300-450
Two 1/2in RFGs (RFG050)
250-400
640-670
Randomizer
The 5 internal fins form a set of spiraling channels. As the water flows through the nozzle, the channels draw the stream of water in one direction or the other. The small amount of interference at the base of the Eductor causes the stream to randomly change direction as it exits the nozzle.
Eductor
Draws in additional water volume.
Easy Snap FittingSnaps onto a standard loc-line fitting with ease. No tool required.

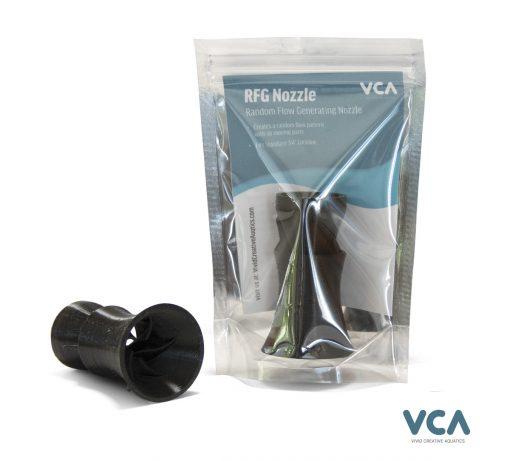

Product Description
Produce a more natural flow pattern in your saltwater aquarium with the RFG Nozzle. Available for 1/2in, and 3/4in with a loc-line fitting and now available in 1 in. slip fitting.
The RFG Nozzle can dramatically change the way water moves around your reef tank and help create a more natural flow pattern.
Creates a random flow pattern with no moving parts!
Easily Snaps onto standard 3/4in Loc-Line
Printed in Reef-safe PETG plastic.
PATENT PENDING DESIGN
Flow recommendations
The RFG Nozzle will handle far more flow than the "Optimal" GPH recommendations, so we encourage you to experiment and test the limits of the RFG Nozzles.
Model
Suggested Minimum GPH
Optimal GPH
Single 3/4in RFG
180-200
420-500
Two 3/4in RFGs
400-500
700-800
Randomizer
The 5 internal fins form a set of spiraling channels. As the water flows through the nozzle, the channels draw the stream of water in one direction or the other. The small amount of interference at the base of the Eductor causes the stream to randomly change direction as it exits the nozzle.
Eductor
Draws in additional water volume.
Easy Snap FittingSnaps onto a standard loc-line fitting with ease. No tool required.
Product Description

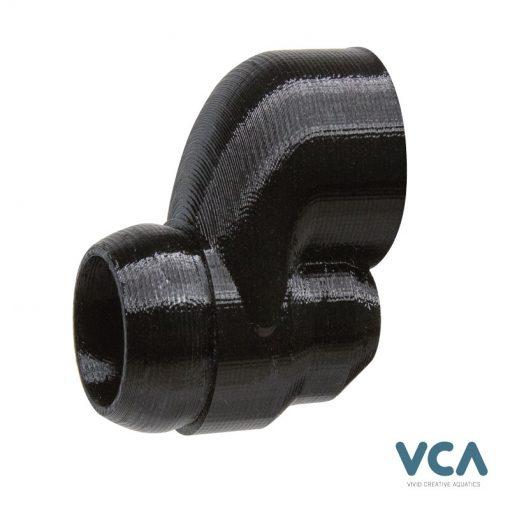

25mm Slip-Fit-Drop adapter designed to attach to a Standard Red Sea Reefer Sump Pump Return Nozzle
Compatible with the 1/2in RFG Nozzle
3D Printed in Reef Safe PETG Plastic
Red Sea Reefer Compatible Adapter
For the Random Flow Generator to work, it must be fully submerged. The Red Sea Reefer setup puts the return nozzle right at the water line. The Red Sea Reefer Adapter solves this by dropping the nozzle below the water line just enough for proper operation.
Pair this Adapter with a 1/2in RFG Nozzle, and you have the perfect random flow solution for your your reef tank.
Installation of the RFG Nozzle to the Red Sea Reefer Sump Pump Return Outlet Nozzle
Installation is easy and require no tools. Simply remove the nozzle extension and slide on the 25mm Slip-fit adapter. The RFG nozzle then attaches to the Adapter.
Product Description

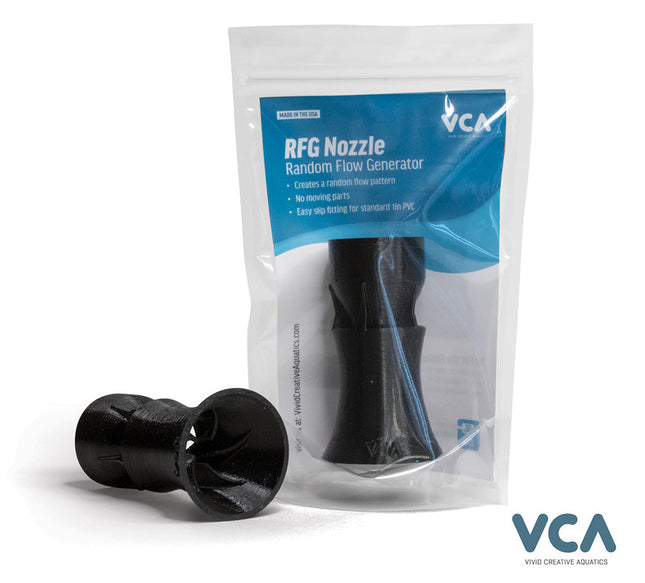

Produce a more natural flow pattern in your saltwater aquarium with the RFG Nozzle. Available for 1/2in, and 3/4in with a Loc-Line fitting and now available in 1 in. Modular Hose fitting.
Creates a random flow pattern in your Reef tank or Pond with no moving parts!
1 in. Female Slip Fitting – Snugly fits standard 1in PVC pipe
Printed in Reef-safe PETG plastic.
PATENT PENDING DESIGN
Flow recommendationsThe RFG Nozzle will handle far more flow than the "Optimal" GPH recommendations, so we encourage you to experiment and test the limits of the RFG Nozzles.
Model
Minimum GPH
Optimal GPH
1in RFG
320-400
720-1,000
A Random Flow Generator
With No Moving Parts.
The internal structure of the RFG Nozzle is comprised of a 5-vane helix that spirals nearly the entire length of the nozzle.Each vane of the helix is connected to an eductor at the base. Together, they form a set of internal channels.The channels work to randomly direct the water in different directions as it exits the nozzle.
1 in. PVC Slip Fitting
The RFG100 is designed to snugly fit on the end of standard 1 in. PVC pipe. No glue and no re-plumbing – just slip it on..
Product Description
Red Sea Reefer Ultimate Return Line Upgrade – 25mm to 1/2in RFG
Simply the Easiest Way to Upgrade the Flow of your Red Sea Reefer Return Nozzle
Kit Includes:– 25mm to 3/4in Slip-fit Loc-Line Adapter– Genuine Loc-line 3/4in to 1/2in Y Fitting– 4 Sections of genuine 1/2in Loc-line– 2 x 1/2in Random Flow Generator Nozzles
3D Printed Parts printed in Reef-safe PETG plastic.
Suggested Flow Rates:GPH guidelines are calculated to the nozzle after head loss
Suggested Minimum: 350-400 GPH
Optimal: 640-670 GPH (or more)
Product Description

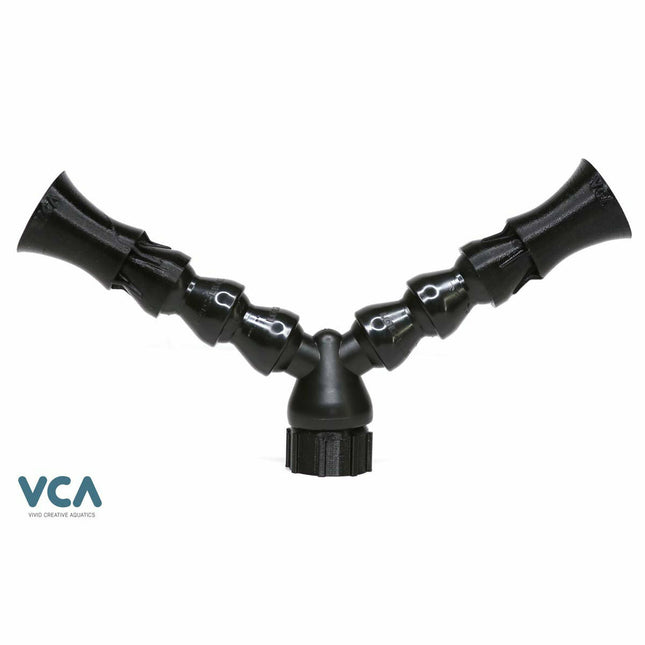

Red Sea Reefer Ultimate XXL Return Line Upgrade – 25mm to 3/4in RFG
Simply the Easiest Way to Upgrade the Flow of your Red Sea Reefer Return Nozzle
Kit Includes:– 25mm to 3/4in Slip-fit Loc-Line Adapter– Genuine Loc-line 3/4in Y Fitting– 4 Sections of genuine 3/4in Loc-line– 2 x 3/4in Random Flow Generator Nozzles
Suggested Flow Rates:
GPH guidelines are calculated to the nozzle after head loss
Suggested Minimum: 400-500 GPH
Optimal: 700-800 GPH (or more)
