Product Description
X2SR is a water change system that can remotely control it through the mobile phone App using WiFi. The automatic water replenishment function can be completed through the submersible pump interface. To mitigate possible overflow risks, X2SR comes standard with an anti-overflow sensor. When the water level reaches the anti-overflow sensor, an alarm will be triggered, and the water supply and change will stop.
Basic Parameters
Flow: More than 900ml/minPower Adapter Input: 100VAC -240VACOutput: DC24V 1.9ANumber of dosing: 24 times/day-1 time/99 daysInterface: WiFi (App remote control)Working environment: Temperatures: 0 - 70℃; Humidity: 10% - 90% (non-condensation)Dimensions (L*W*H): 168*177*223mm (including pump head)Weight: 4.106KG (not including power supply)Max Head Pressure: 32ft
Packing List
X2SR ×1
Power adapter body (DC24V 1.9A)
Power adapter plug (US/UK/EU/AU)
Plastic cylinder (50ml)
PVC tube 9.5*12.5mm; green 6m
Kamoer tube manifold Transparent
Float level sensor(headphone plug)
Float level sensor bracket
Magnet (black)
A submersible pump(DC 24V)
Male-to-male line
12 PVC connecting pipe for auto top-off 8*11mm transparent 1.5m
Anti-siphon connector(1/4 straight)
Grease ×10g
Quick start guide
Qualified certification
More Details
The outlet of drain pump, connect to wastewater bucket
Inlet of drain pump, connect to the fish tank
The outlet of refill pump, connect to the fish tank
The inlet of the refill pump, connect to fresh seawater
DC24V pump, connect to submersible pump
Liquid level sensor for detecting whether freshwater is empty
Liquid level sensor for detecting whether wastewater is full
Anti-overflow sensor for detecting whether the tank reaches the warning water level
The liquid level sensor used to maintain the normal water level of the fish tank
Reset button for configuring the network
DC24V IN, power input
Drain pump running indicator
Power/Wi-Fi status indicator
Refill pump running indicator
The button of Drain pump, long-press the button to run
The button of Refill pump, long-press the button to run
Precautions
★ Please use the product's own power adapter and work in the specified working environment.★ This product only supports 2.4G Wi-Fi, not 5G Wi-Fi.★ Perform flow calibration before using the device to ensure that the water output is the same as the water input when changing water.★ The connecting pipe for the liquid inlet should be as short as possible, and the connecting pipe for the liquid outlet should be suspended above the tank.★ Please carefully check whether the connection direction of the water inlet and outlet is correct, and do not connect them in reverse.
Product Description
Smart ATO Duo SATO-280P
Smart ATO Duo is a compact auto top off system for both nano and medium aquariums.
Combined two precise sensors in one pack with a touch controller and integrated with QST (Quick Security Technology), which provides real-time protection against any failure and detects water empty.
Smart ATO Duo offers you an easy, safe and efficient choice of auto top off systems.
The smallest ATO system currently available
Suitable for nano / medium aquariums
Extremely easy to install with integrated magnetic mount
No moving parts to fail
Dual-optical level sensor in one pack provides dual protection
Touch controller shows operation status
QST (Quick Security Technology) provides real-time failsafe protection against failure
Audible and LED light alarm
Everything needed is included
Product Description
Smart ATO Lite G2 With its square optical dual-sensor which provides precise detection of water level even at a distance of 1 mm , Smart ATO Lite G2 can automatically replenish your aquarium to maintain a consistent salinity level better than manual replenishment and save you from this annoying chore.
ADVANCED HIGH PERFORMANCE SENSOR
The brand new highly sensitive square dual optical sensor for the detection of the water level greatly reduces the delay, allowing hobbyist to be a step more precise at any time during auto topping-off.
INTELLIGENT SECURITY TECHNOLOGY
The unique QST (Quick Security Technology) can detect sensor or pump failure and avoid overfilling instantly without any complicated settings. With the intuitive LED indicator, you can know its status at a glance.
SUPERIOR EVOLUTION OF SAFETY
The patented magnetic-mount dual sensor provides not only better protection but also easier installation. It can be set at any colors of the wall and work well in complete darkness.
PURSUIT OF PERFECTION
The special design of the Smart ATO Lite G2 hub can prevent the connector of the pump and the power adapter from being rusted or damaged due to water and ensure users safety and longer product lifetime.
Small but Mighty
Smart ATO Lite G2 is a compact auto top off system for both nano and medium aquariums. Combined an ATO level sensor and a fail-safe sensor in one pack and integrated with QST (Quick Security Technology), which provides real-time protection against any failure and detects reservoir empty, Smart ATO Lite G2 offers you a safe and economical choice of auto top off!
SPECIFICATIONS
Power :
- Input : 100-240 VAC 50-60 Hz
- Output : 12 VDC / 1 A
- Power Cord Length : 6 ft (180 cm)
DC Pump :
- Head : 8.2 feet (250 cm)
- Flow Rate : 74 gph (280 lph)
- Pump Cord Length : 6 feet (180 cm)
Max. Mounting Thickness :
- Sensor : 1/2 inch (12.7 mm)
- Universal Tube Holder : 1/2 inch (12.7 mm)
Length of Cable between Sensor and Controller : 4 feet (120 cm)
Tubing :
- Length : 6.5 feet (200 cm)
- ID : 6.5 mm / OD : 9.0 mm
Product Description
Interchangeable with most residential/aquarium RO or RO/DI systems.
- Graduated sediment removal- Excellent for use in areas with extremely high sediment levels- Near absolute micron rating- Proprietary center core for added strength- Longer life cycles- Greater particulate holding capacity- Consistent filtration even at high differential pressures- 100% polypropylene construction- Cartridge free of surfactants, binders and adhesives- Negligible extractables- Meet USP - XXIII Class VI Plastics Requirements
Two size available: 1.0 Micron or 5.0 Micron to choose from.
Product Description
Prevent your aquarium from overflowing or equipment from running dry.
For the Aquarium keeper who is worried about the floor flooded due to a drain pipe malfunction? Or finding the the sump was running out water and the pump was about to run dry?
Smart Level Security can help!
Just attach the tiny sensor above (detecting high level) / below (detecting low level) the water level with the magnet, plug the equipment in Smart AC Switch, and connect the power. It's just that simple!
Power Input / Output : 240 VAC, 10 Amp
Max. Power : 2200 W for 220 VAC
Max. Mounting Thickness : 1/2 inch (12.7 mm)
Cable Length : 10 feet (300 cm)
Comes with Innovative Optical Sensor
The smallest but the smartest optical sensor not only detects water level more precisely but also contains no moving parts that can fail. It can be mounted to most clear, tinted, or painted surfaces in a second with the magnet, saving you from annoying installation.
Top Notch Technology
Smart Level Security can be used as either a high-level sensor or a low-level sensor. It will shut off the equipment and give an audible and visual alarm immediately when the sensor is triggered to prevent catastrophe.
Plug and Play
Just plug the skimmer in the Smart AC Switch and it will work in a second without any annoying programming. Enjoy peace of mind!
Smart and Safe
The auto time delay function can protect both the skimmer and the aquarium and avoid false alarm when a power outage occurs.
What is included:
Smart Level Security
Australian Plug Powerboard.
Product Description
Ultra High-Performance Sensor for Auto Top Off.
With its square optical dual-sensor which provides precise detection of water level even at a distance of 1mm, Smart ATO Lite G2 can automatically replenish your aquarium to maintain a consistent salinity level better than manual replenishment and save you from this annoying chore.
ADVANCED HIGH PERFORMANCE SENSOR
The brand new highly sensitive square dual optical sensor for the detection of the water level greatly reduces the delay, allowing hobbyist to be a step more precise at any time during auto topping-off.
INTELLIGENT SECURITY TECHNOLOGY
The unique QST (Quick Security Technology) can detect sensor or pump failure and avoid overfilling instantly without any complicated settings. With the intuitive LED indicator, you can know its status at a glance.
SUPERIOR EVOLUTION OF SAFETY
The patented magnetic-mount dual sensor provides not only better protection but also easier installation. It can be set at any colors of the wall and work well in complete darkness.
PURSUIT OF PERFECTION
The special design of the Smart ATO Lite G2 hub can prevent the connector of the pump and the power adapter from being rusted or damaged due to water and ensure users safety and longer product lifetime.
Small but Mighty
Smart ATO Lite G2 is a compact auto top off system for both nano and medium aquariums. Combined an ATO level sensor and a fail-safe sensor in one pack and integrated with QST (Quick Security Technology), which provides real-time protection against any failure and detects reservoir empty, Smart ATO Lite G2 offers you a safe and economical choice of auto top off!
What is included:
Smart ATO Lite G2 Controller
Universal Power Adapter
DC Pump
Universal Tube Holder
Siphon Break
Tubing 200cm
Specifications:
Smart ATO Lite G2 (SATO-266P)
Power :
- Input : 100-240 VAC 50-60 Hz
- Output : 12 VDC / 1 A
- Power Cord Length : 6 ft (180 cm)
DC Pump :
- Head : 8.2 feet (250 cm)
- Flow Rate : 74 gph (280 lph)
- Pump Cord Length : 6 feet (180 cm)
Max. Mounting Thickness :
- Sensor : 1/2 inch (12.7 mm)
- Universal Tube Holder : 1/2 inch (12.7 mm)
Length of Cable between Sensor and Controller: 4 feet (120 cm)
Tubing :
- Length : 6.5 feet (200 cm)
- ID : 6.5 mm / OD : 9.0 mm
Product Description
WHY CHOOSE SMART ASOV ?
Smart ASOV is a unique electronic float valve kit for all kinds of reservoir.
Never worry about forgetting to turn off your RO/DI system or overfilling your reservoir again with this clever gadget!
Simply mount the magnetically mounted sensor to any reservoir / bucket / jug and the water will stop once the reservoir is filled.
No tool is required and there is no unreliable float valve to fail.
Smart ASOV provides you an easy, safe and efficient choice other than float valves.
MODEL: SASO-200V
Features:
Prevents flood accidents when making RO or RO/DI Water
Installs & uninstalls in seconds
Magnetic-mount optical sensor – tool-less installation
Dual-optical sensor for double security
Easily moves from one reservoir to another (brute, jug, bucket, tank, etc…)
Controller shows operation status
Includes:
Smart ASOV Controller x 1
Universal Power Adapter x 1
RO Solenoid Valve x 1
RO Tubing Holder x 1
Specifications:
Power Input: 100-240 VAC 50-60 Hz
Cable Length of Power Adapter: 180 cm (6 ft)
RO Solenoid Valve :
6 W @ 12 VDC
1/4 inch RO Tubing Connection
Max. Mounting Thickness :
Sensor : 1/2 inch (12.7 mm)
RO Tubing Holder : 1.2 inches (30.5 mm)
Length of Cable between Sensor and Controller : 300 cm (10 ft)
Cable Length of Solenoid Valve : 120 cm (4 ft)
Product Description
The ReefATO+ is an exceptionally reliable auto top-off system that includes a highly accurate temperature monitor plus an external leak detector and is supplied with a smart controller and useful ReefBeat features. It has a unique solid-state level sensor, with five titanium probes that can pinpoint if you are above, below, or at the desired water level, along with backup OFF sensors, a fail-safe mechanism that stops the pump if it is operating for too long, and of course ReefBeat notifications if anything is out of the ordinary.
How it Works
The EC technology titanium probes detect the water levels that triggers the pump to be switched on and off to maintain a stable water level and salinity.
Water Level Sensor
Fail-proof (solid-state EC technology) water level sensor, with built-in back-up pump-OFF probes located 2.5cm / 1” above the normal pump-OFF point.
The full array of the Reef-Spec titanium probes gives an indication at all times of the actual water level relative to the sensor, which can be seen on the ReefBeat App at all times.
Temperature Sensor, Logs and Notifications
The temperature sensor integrated in the ATO+ sensor has been pre-calibrated to give an accuracy of ±0.1°.
The ReefBeat App allows you to set a narrow “desired” temperature range, and a slightly wider “acceptable” range, that will be seen on-line in the ReefBeat App and in the full temperature logs. In the event that the temperature goes outside the acceptable range you will get a notification to your smartphone.
The detailed logs will show you the minimum, maximum and average temperatures at 15 minute intervals for the past 28 days.
Safe, Powerful and Quiet ATO Pump
• Quiet, variable flow, 12 vdc ATO pump.• Cylindrical design with diameter of 4.5cm / 1.8” to fit inside standard jerrycans.• Max flow rate 300 lph / 75 gph, Max head 2.5m / 8’, power 6–10W.• Pump performance monitor in the controller will shut down the pump automatically and let you know through the ReefBeat App if it is not connected, stalls or RO reservoir runs dry.• Pump speed is automatically adjusted according to your installation to maintain a flow rate of approximately 72 lph / 18 gph ensuring a splash proof and quiet flow of water into the sump.• The noise damping rubber impellor chamber cover and impellor can be removed for pump maintenance.• Includes lock-nut on the outlet hose barb for secure connection to the silicon tubing.
Leak Detector
The highly sensitive, Reef-Spec leak detector with saltwater resistant titanium probes detects the full range of waters from RODI to seawater.
If a leak is detected the ATO Auto-fill is immediately disabled, and after a few seconds to confirm that the leak persists, the controller sounds an optional audible alarm and sends a notification to your mobile device.
Connect the Leak Detector to the Emergency Quick-action for the aquarium and ReefBeat eco-system will automatically shut down other ReefBeat devices such as the ReefRun return pumps.
Complete Installation Kit
• Sensor holder and magnetic corner mounting bracket for 12mm ½” glass.• 3M /10′ – 1.5mm / 1/16″ thick silicone tubing ID 5mm / 0.2″.• Silent flow – Tube holder, clips on 4 – 12mm / ½” glass.• Siphon Breaker.
Safe.
l-proof (solid-state EC technology) water level sensor with built-in safety shutoff.
Automatic shut-down if the sensor is not connected, if the pump runs significantly longer than normal, if the RO reservoir runs out of water or if a leak is detected.
Product Description
Smart AC Socket is a simple accessory from AutoAqua that allows the use to swap out the small DC pump on a Smart ATO, Smart ATO Micro or AWC to any AC pump under 9amps power draw.
Product Description
Interchangeable with most residential/aquarium RO or RO/DI systems.

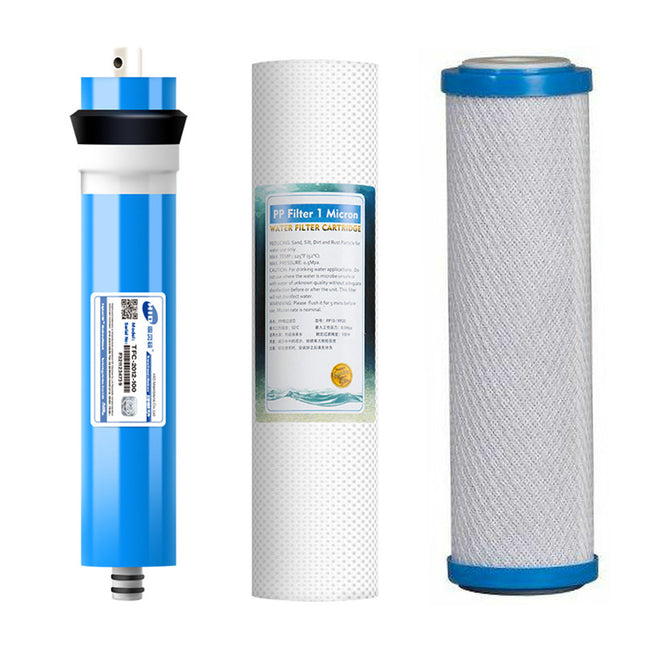

Bundle set included:
- Membrane for RODI systems, 100 gallons per day x 1
- RODI Standard (1.0 Micron) Sediment Filter x 1
- Carbon Block Filter Cartridge x 1
Product Description
Interchangeable with most residential/aquarium RO or RO/DI systems.
- Remove chlorine, organics, taste and odor- Dual-purpose - combination sediment and carbon filter- Excellent service life- No channeling or bypassing of fluids- Meet NSF Standards- 0.5uM carbon block filters remove trihalomethanes, low levels of chloramine, pesticides, volatile organic chemicals and 99.95% of giardia and cryptosporidium cysts.
Please Note: Flush for minimum of 5 minutes prior to use
