Description
Product Description

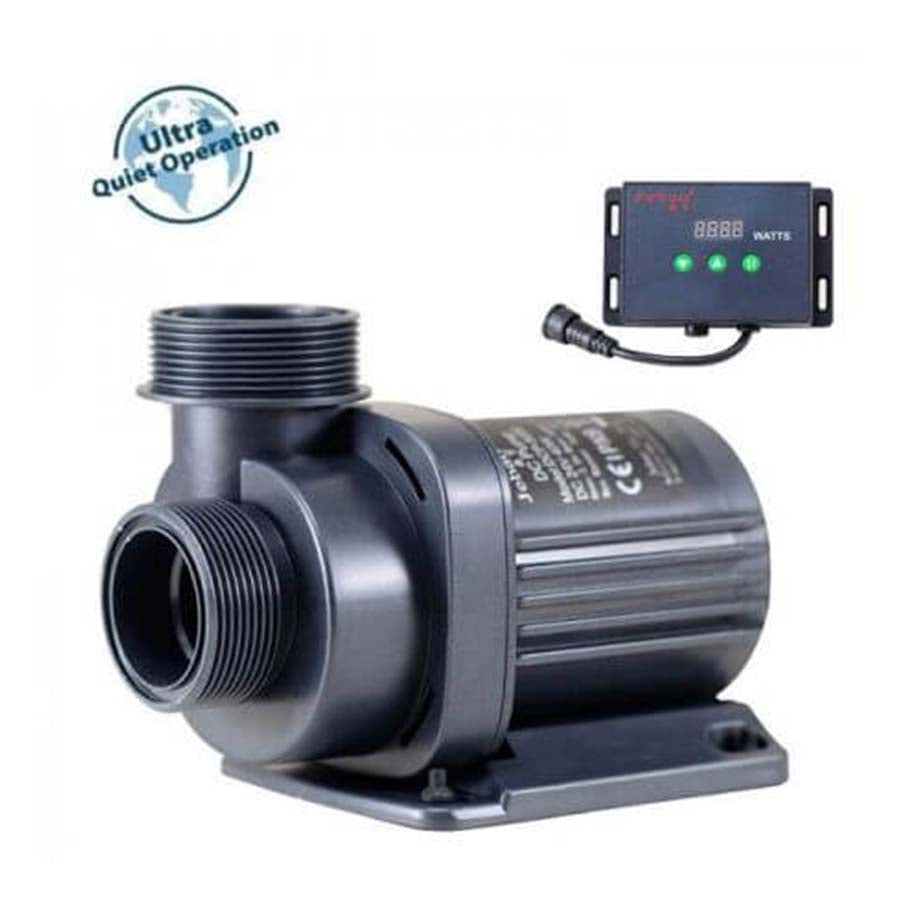

The Jecod DCP booster pumps are high performance pumps with a controller that work professionally and reliably. The simple speed control and operation of the Jecod DCP is enhanced by innovative electricity that provides an energy saving of around 65%.
SINE wave technology, ultra quiet operation; IC Electronic detection allowing automatic shutdown at no water. Hard-wearing ceramic shaft.
Overview of the most important features:
- Controllable 70 stages (F030 - F100)
- Soft start
- Extremely quiet
- Max Flow rate: 6000 L / H
- Max Delivery height 4.2 m
- Nominal power: 50 watts (24V) at the highest level,
- The actual energy consumption depends on the setting
- Suitable for fresh and sea water
- Enter Pause button (10 minutes) with Soft-Restart and Restart
- Keystroke control is "lockable" eg Parental control
(press the feeding button breaks)
- Automatic dimming display (25 seconds after the last press of the button, the brightness of the display is automatically greatly reduced)
- Hose connector for 25, 32 40 mm PVC pipe
- Hose connector on the suction side: 25, 32 and 40 mm
- Dimensions: Length 196 mm x Width 104 mm x Height 163 mm
All Jecod DCP models
| Fashion model |
Voltage |
Consumption (w) |
Yield (L / H) |
Head (M) |
| DCP-2500 |
DC24V |
23 |
2500 |
2.5 |
| DCP-3000 |
DC24V |
25 |
3000 |
3.0 |
| DCP-4000 |
DC24V |
33 |
4000 |
3.5 |
| DCP-5000 |
DC24V |
40 |
5000 |
3.5 |
| DCP-6000 |
DC24V |
50 |
6000 |
4.2 |
| DCP-6500 |
DC24V |
55 |
6500 |
4.5 |
| DCP-8000 |
DC24V |
65 |
8000 |
5.2 |
| DCP-10000 |
DC24V |
80 |
10000 |
6.0 |
| DCP-15000 |
DC36V |
105 |
15500 |
7.0 |
| DCP-18000 |
DC36V |
130 |
18000 |
9 |
| DCP-20000 |
DC36V |
165 |
20000 |
10 |
